Vibroformatrice 2020

Watch the videos:

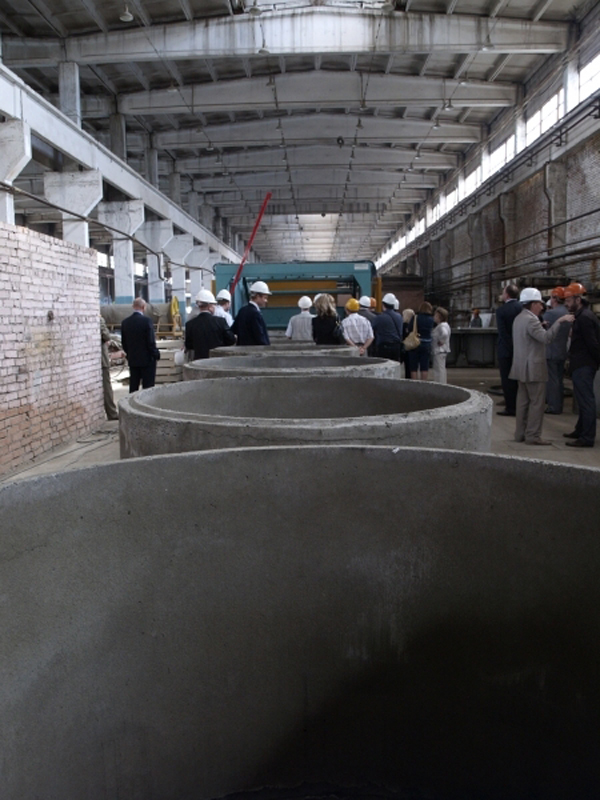

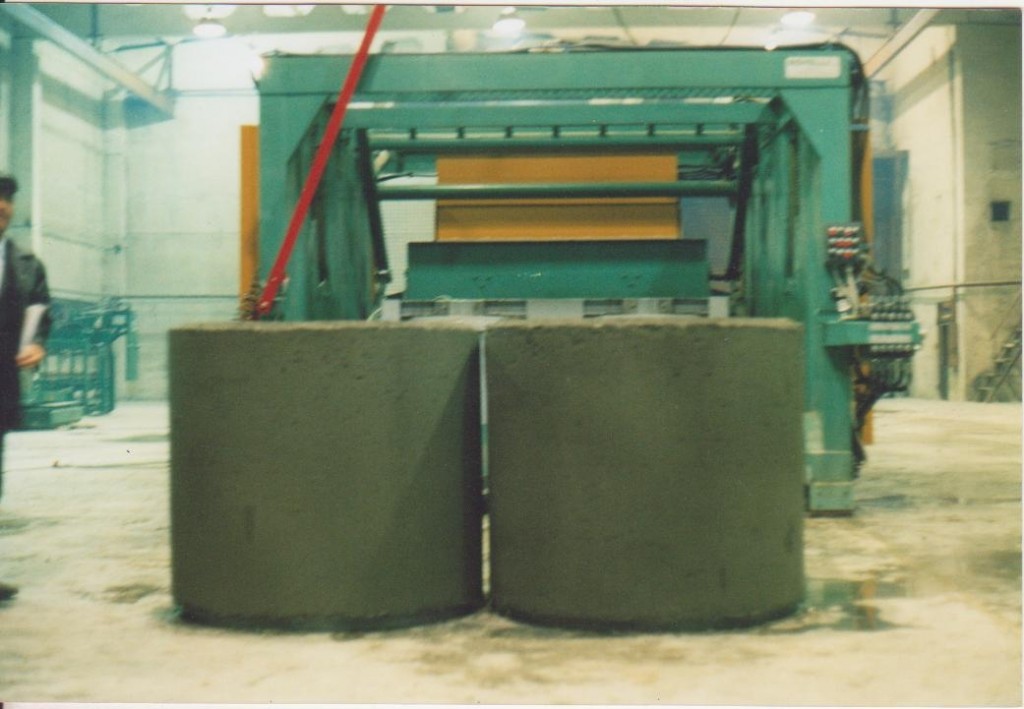

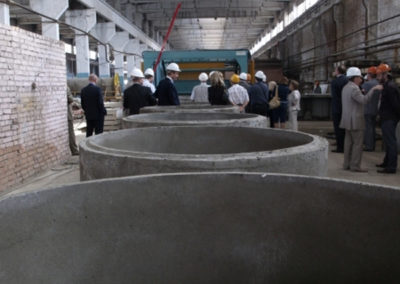

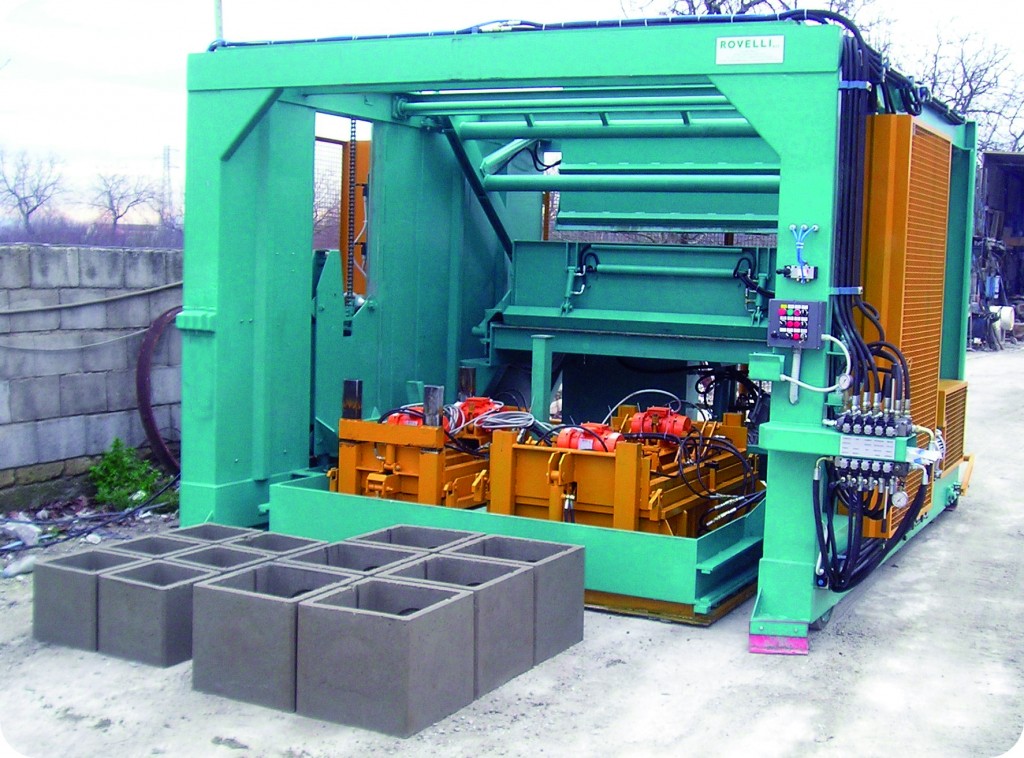

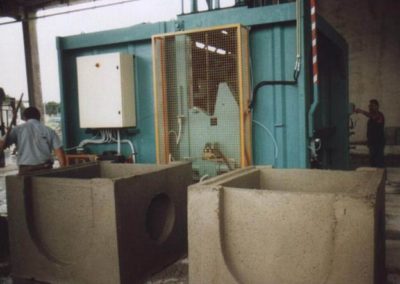

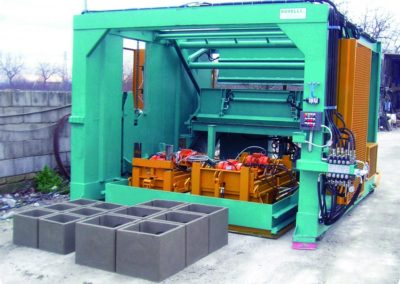

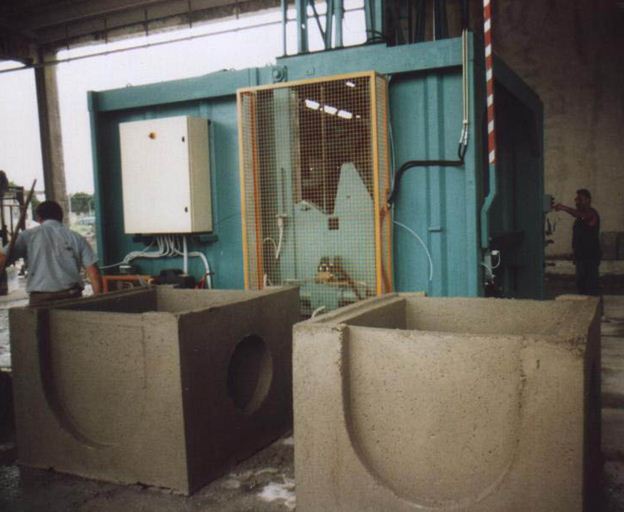

Photo Gallery:

Technical Specifications of Vibroformatrice 2020

  • Work table: 2.20 x 2.20 meters
  • Maximum Height for vertical operation: 1.20 meters
  • Maximum Height for tooling rotation: 1,10 meters
  • Loading tray capacity: 750 Litres
  • Mould feeder tray: dual agitator with vertical blades
  • Variable vibration frequency: 0-150 Hz
  • Vibrators provided: n.4 by 1500Kg each
  • Axial movement: Electromechanical with motor gear
  • Moulding rotation: motor/ hydraulic gear
  • Axial rotation: Electromechanical gear rotation with hydraulic lift
  • Wheels material: PVC coated
  • Lubrification: Air compressor and sprayer
  • Controls: Manual/hydraulic
  • Electrical Power: 20kW at 380 V + Earth
  • Operators: 1 machine operator, 1 Fork lift driver for mix transport
  • Footprint: 4000 x 4100 x 2650 mm
  • Duty Cycle: 13 to 17 Cycles Per Hour
  • The machinery is supplied with safety systems, protection, schematics and instruction and maintenance manuals compliant to CE 89/392
