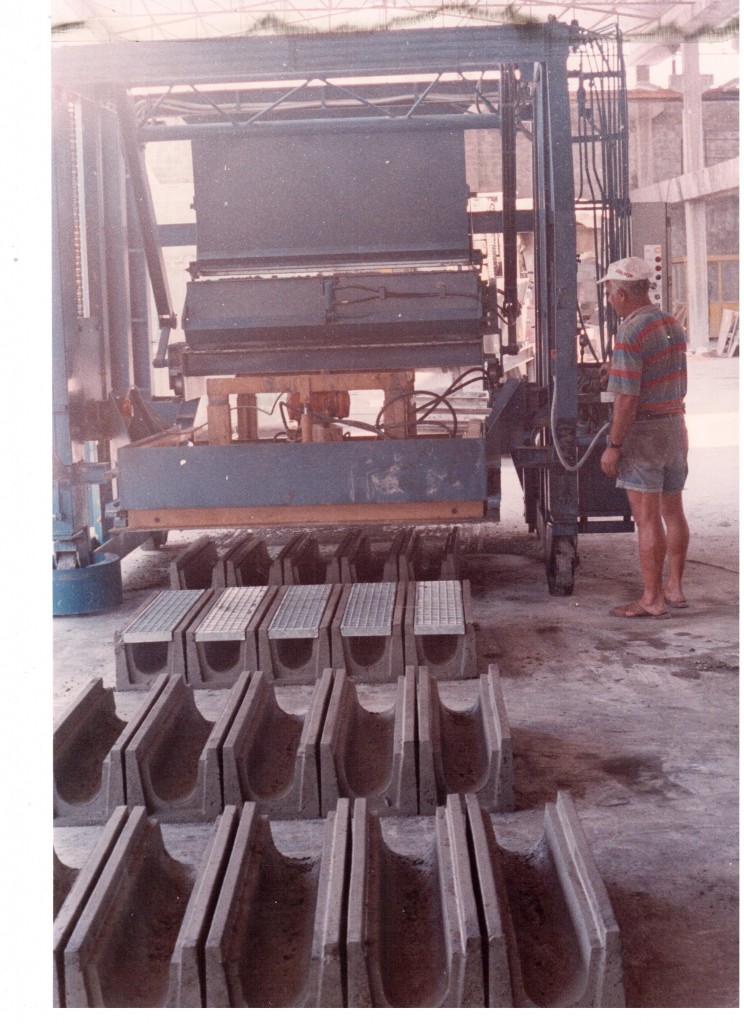

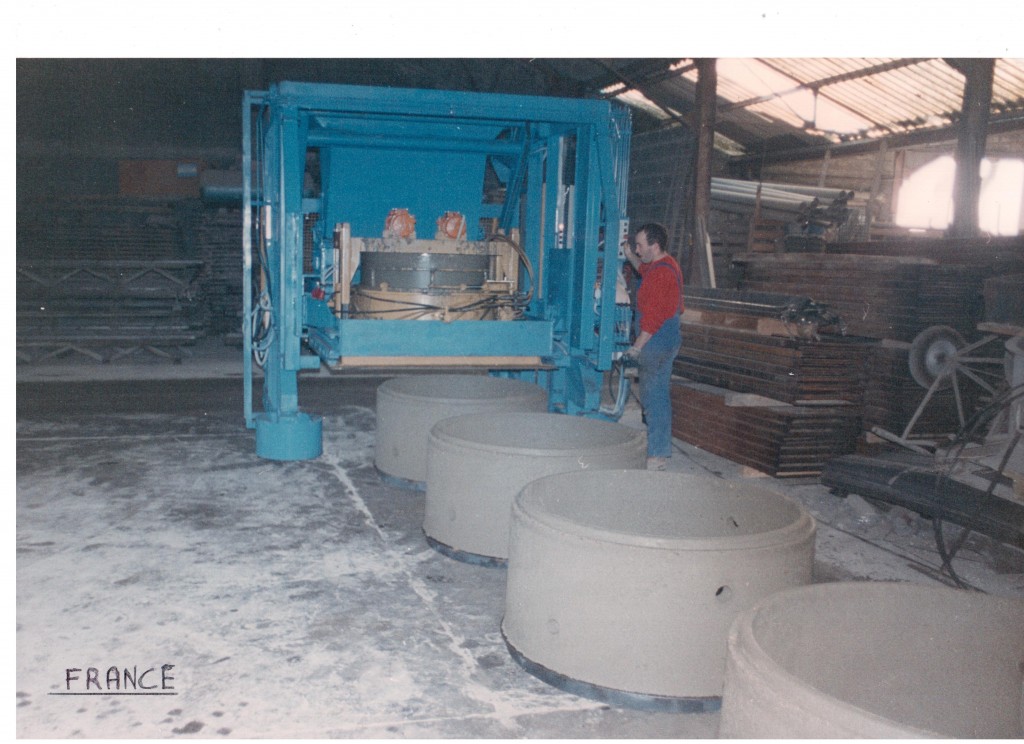

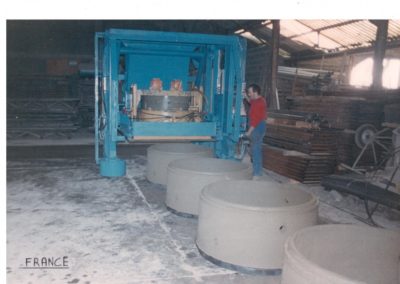

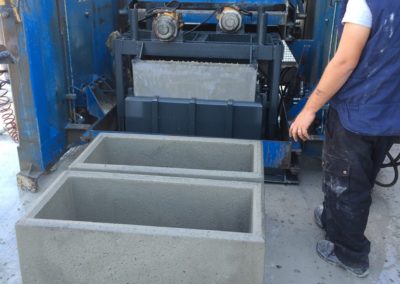

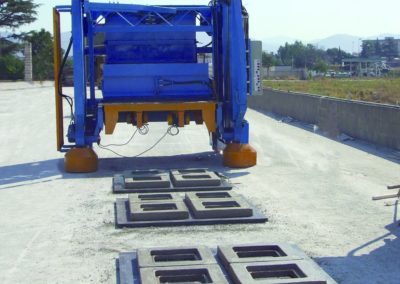

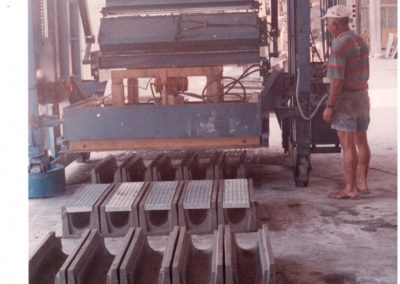

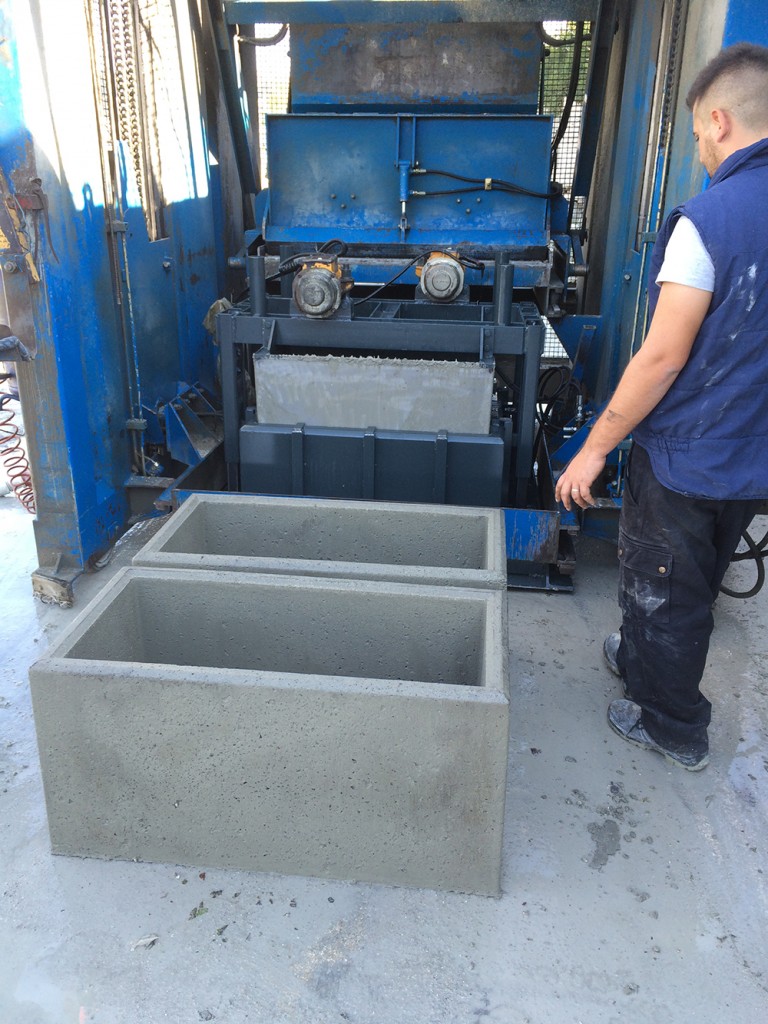

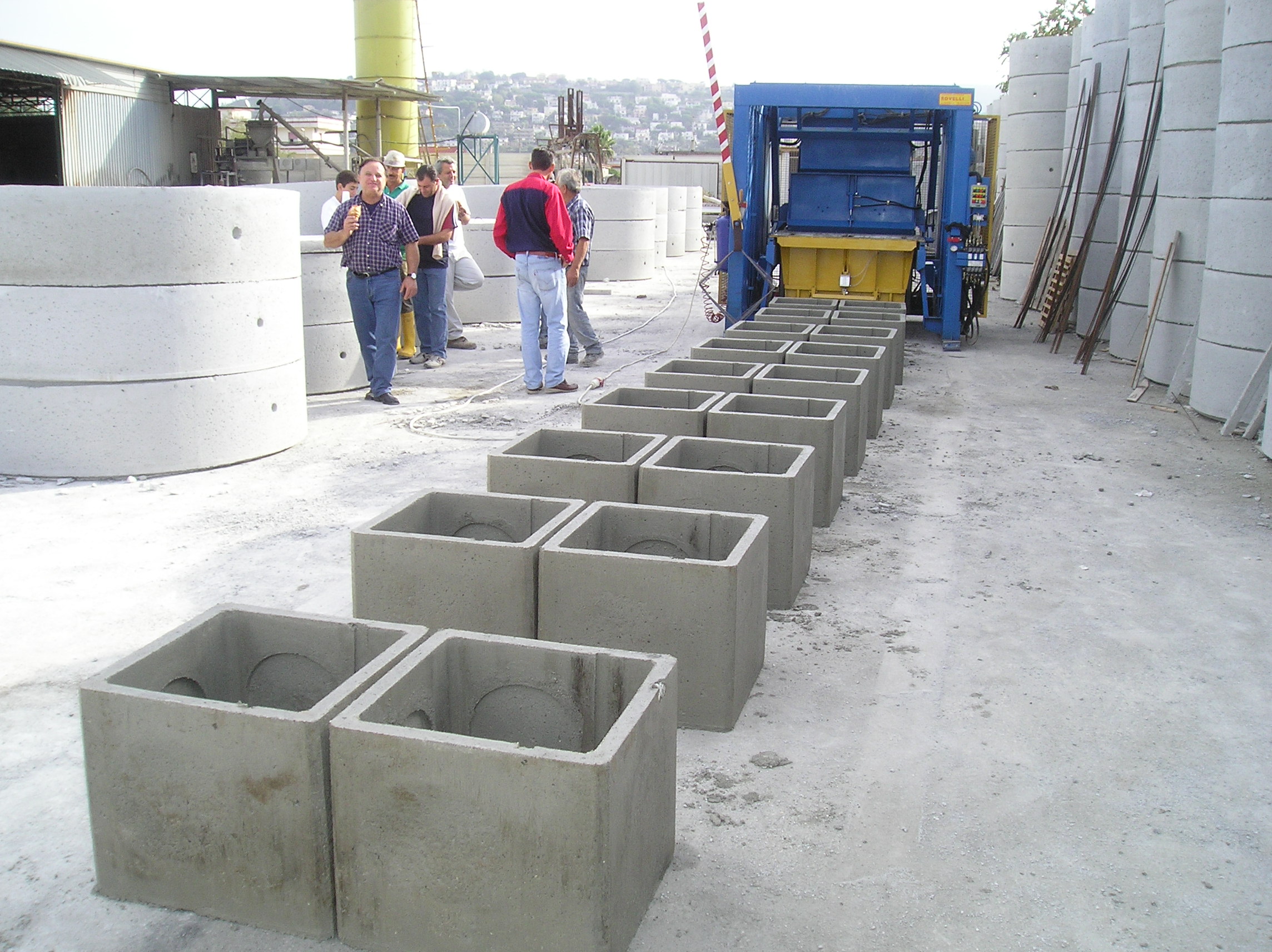

Vibroformatrice 1212
![OLYMPUS DIGITAL CAMERA](https://www.rovelli-srl.it/wp-content/uploads/2012/06/PA300013.jpg)
![sfor-lam-3-1024x894](https://www.rovelli-srl.it/wp-content/uploads/2012/05/sfor-lam-3-1024x894.jpg)
![Prolunga d'arredo](https://www.rovelli-srl.it/wp-content/uploads/2015/03/Prolunga-darredo1.jpg)
1 machine operator
1 fork lift driver
15kW at 380V + Earth
Electrical power
0-150 Hz
Variable vibration frequency
16/20 cycles per hour
Duty cicle
Technical Specifications
- Work table: 1.35×1.35 meters
- Maximum Height for vertical operation: 1 meter
- Maximum Height for tooling rotation: 0.90 meters
- Loading tray capacity: 500 Litres
- Mould feeder tray: dual agitator with vertical blades
- Hydraulic circuit: Dual pump
- Axial movement: Electromechanical with motor gear
- Axial rotation: Electromechanical rotating wheel with motor gear
- Wheels material: PVC coated
- Lubrification: Air compressor and sprayer
- Weight (tooling excluded): 3200 Kg
- Footprint: 3100 x 2800 x 2500 mm
- The machinery is supplied with safety systems, protection, schematics and instruction and maintenance manuals compliant to CE 89/392
