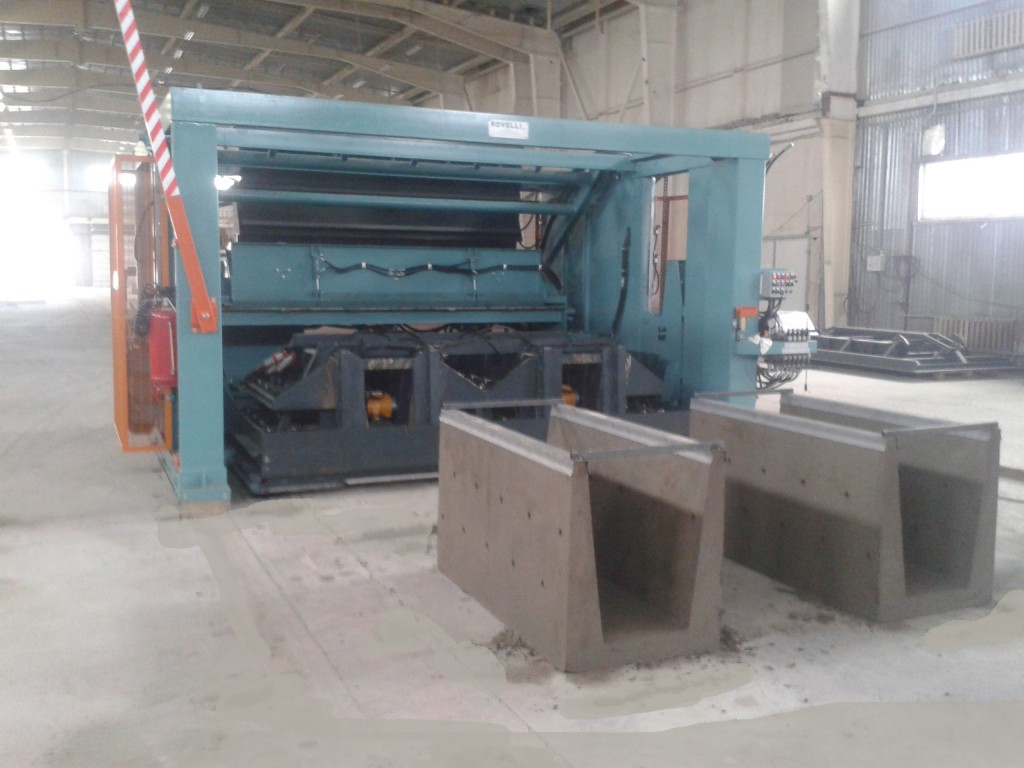

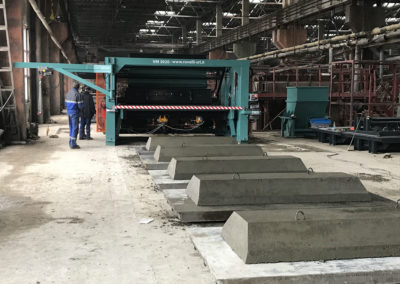

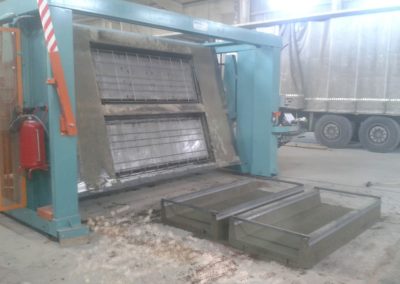

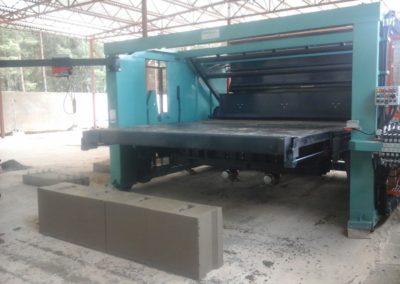

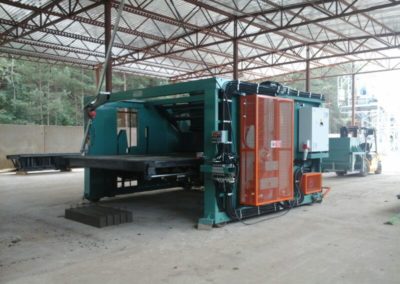

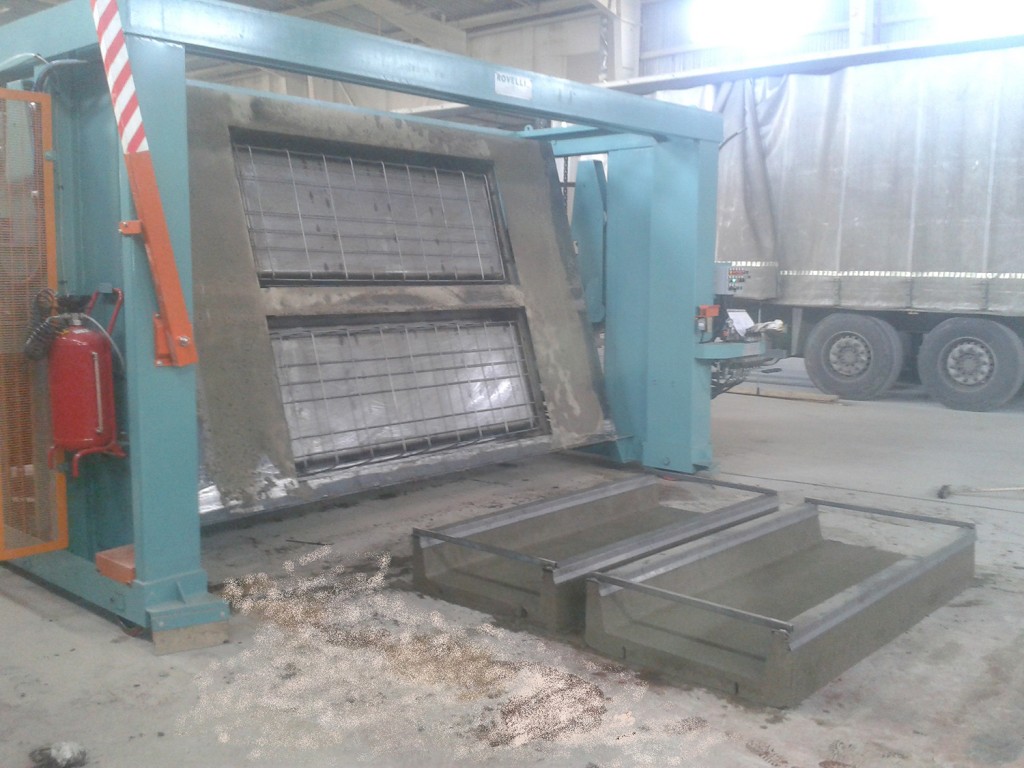

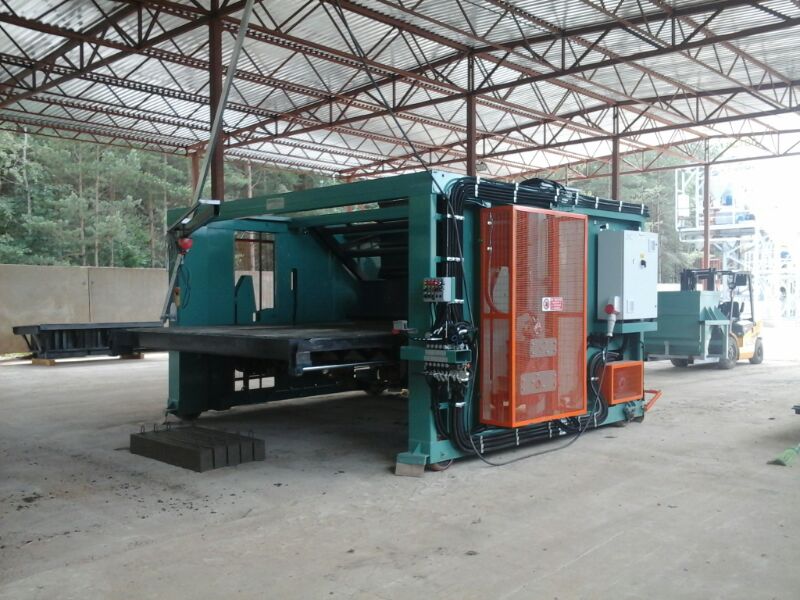

Vibroformatrice 3020

1 machine operator

1 fork lift driver

20kW a 380V + earth

Electrical power

0-150 Hz

Variable vibration frequency

10/14 cycles per hour

Duty cycles

Technical Specifications of Vibroformatrice 3020

  • Work table: 3 x 2.20 meters
  • Maximum Height for vertical operation: 1.20 meters
  • Maximum Height for tooling rotation: 1,10 meters
  • Loading tray capacity: 1200 Litres
  • Mould feeder tray: Triple agitator with vertical blades
  • Vibrators provided: n.4 by 2000Kg each
  • Axial movement: Electromechanical with motor gear
  • Moulding rotation: Dual motor/ hydraulic gear
  • Axial rotation: Electromechanical gear rotation with hydraulic lift
  • Wheels material: PVC coated
  • Lubrification: Air compressor and sprayer
  • Controls: Manual/hydraulic
  • Footprint: 4000 x 5000 x 2600 mm
  • The machinery is supplied with safety systems, protection, schematics and instruction and maintenance manuals compliant to CE 89/392
